Product Overview
In residential projects, installation limitations are common.
Traditional panels may not work due to:
- roof weight restrictions
- curved or irregular structures
- aesthetic requirements

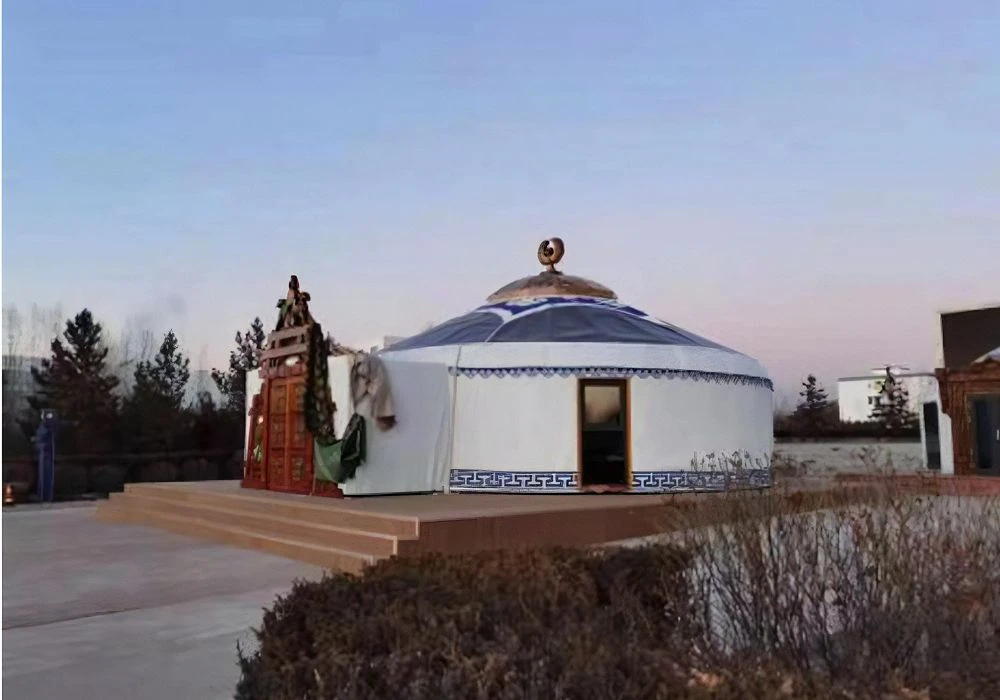

Flexible solar panels provide a practical alternative by adapting to the roof instead of requiring structural changes.
Parameters
| Parameter Categories | Parameter name | 110W 03N 2.6m |
210W 03M 1.7m |
300W 03W 1.7m |
500W 03W 2.6m |
|
| Electrical Parameters | Nominal power | 110W | 210W | 300W | 500W | |
| Conversion efficiency | 14.4% | 14.3% | 15.3% | 16.4% | ||
| Power tolerance | +5/0 W | +10/0 W | +10/0 W | +10/0 W | ||
| Maximum power voltage (Vmpp) | 28.4V | 18.1V | 38.1V | 62.4V | ||
| Maximum power current (Impp) | 3.89A | 11.65A | 7.89A | 8.03A | ||
| Open circuit voltage (Voc) | 36.3V | 23.2V | 48.0V | 77.2V | ||
| Short circuit current (Isc) | 4.66A | 一 | 9.21A | 9.07A | ||
| Maximum series fuse | 10A | 25A | 25A | 25A | ||
| Maximum system voltage | 1000V | 1000V | 1000V | 1000V | ||
| Thermal Properties | NOCT | 48℃ | 48℃ | 48℃ | 48℃ | |
| Power temperature coefficient | -0.38%/℃ | -0.38%/℃ | -0.38%/℃ | -0.38%/℃ | ||
| Voltage temperature coefficient | -0.28%/℃ | -0.28%/℃ | -0.28%/℃ | -0.28%/℃ | ||
| Mechanical Dimensions | Length | 2583mm | 1709mm | 1709mm | 2583mm | |
| Width | 348mm | 973mm | 1292mm | 1292mm | ||
| Thickness (at junction box) | 17mm | 17mm | 17mm | 17mm | ||
| Weight without adhesive | 1.7kg | 2.9kg | 3.7kg | 5.6kg | ||
| General Information | Battery type | CIGS | CIGS | CIGS | CIGS | |
| Junction box | IP68 | IP68 | IP68 | IP68 | ||
| Connector | MC4 | MC4 | MC4 | MC4 | ||
| Certifications | IEC61646/61 730 |
IEC61646/61 730 |
IEC61646/61 730 |
IEC61646/61 730 |
||
Key Capabilities
Fits non-standard roofs:

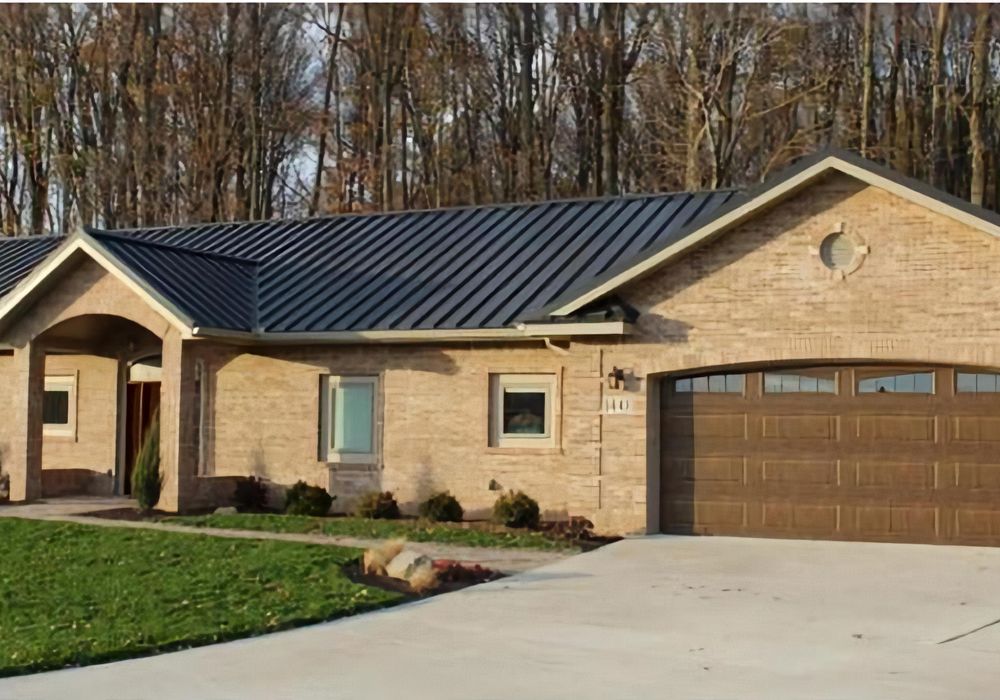

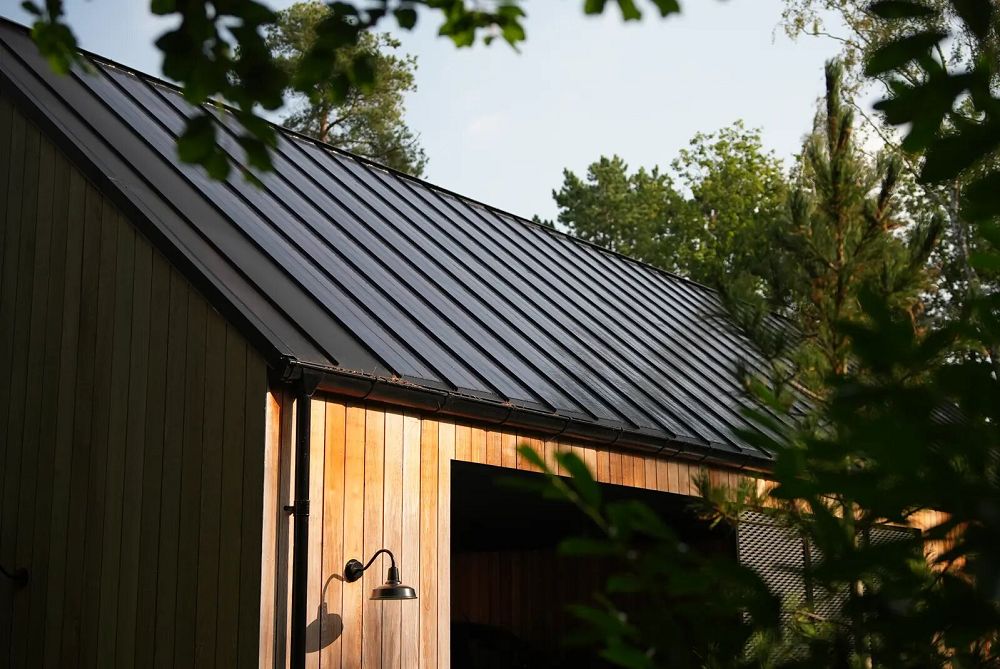

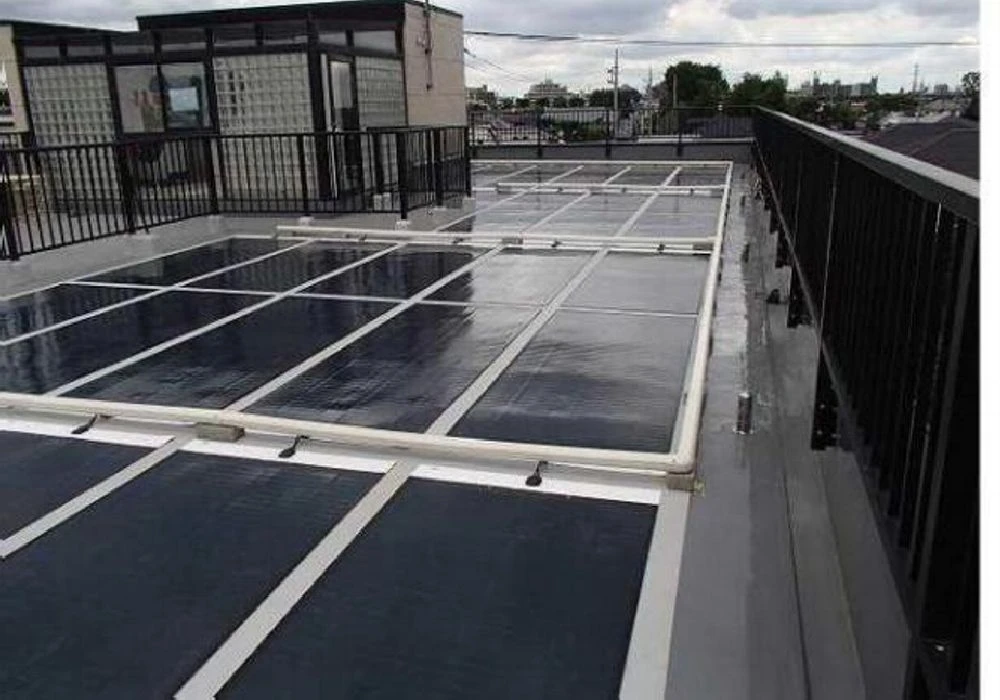

Ideal for metal roofs, curved roofs, and lightweight structures.
Performs in partial shading:
Generates power throughout the day, not just peak sunlight.
Lightweight installation:
Reduces structural load and simplifies installation.
Low visual impact:
Blends into roof design more naturally.
Where it is used

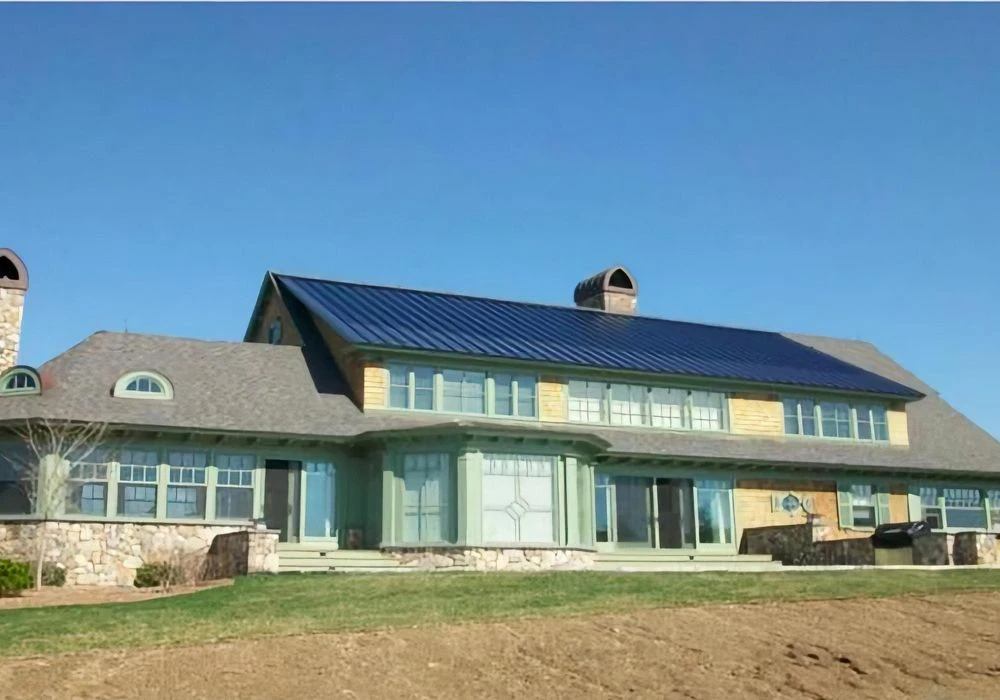

Residential housing projects
Prefab and modular homes
Renovation projects
Architect-designed buildings
Why developers choose this
For contractors and developers:
- easier installation process
- lower structural requirements
- more design flexibility
For end users:
- stable daily energy generation
- lower electricity costs
- improved property value
Proof & Reliability
- Long-term outdoor durability testing
- Stable performance in high temperatures
- Certified for residential solar standards
CTA
Planning a residential solar project? Share your roof type and project details-we'll recommend a suitable flexible solar solution.
FAQ
Q: Can flexible solar panels be installed on lightweight roofs?
A: Yes. Their low weight makes them suitable for roofs that cannot support traditional panels.
Q: Are flexible solar panels suitable for residential use?
A: Yes. They are widely used in modern residential and architectural projects.
Q: Do flexible panels work in shaded areas?
A: They perform better than traditional panels under partial shading, making them suitable for real residential environments.
